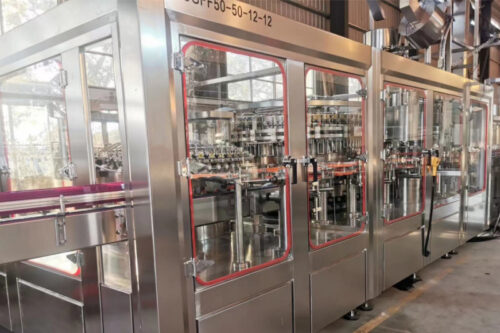

Beer Filling Machine

This equipment is designed for high-end liquids such as craft beer in the market, using a micro negative pressure filling machine that integrates bottle flushing, filling, and sealing. Filling adopts equal pressure filling, with relatively accurate filling liquid level and no dripping. After filling, it is sent to the sealing machine, which can be designed according to the bottle cap.

The conveyor pulley of this machine adopts a stainless steel embedded oil nylon structure, ensuring its strength while not causing scratches on the bottle itself.
The transfer wheel is equipped with a bottle detection alarm function.
Configure the detection and removal functions for the liquid level in the bottle that does not meet the filling requirements.
Automatic supply of lubricating oil to avoid forgetting to add lubricating oil and causing damage to the machine.
The equipment adopts signal linkage control to achieve non-destructive operation.

Model	Washing heads	Filling heads	Capping heads	Production Capacity	Machine power	Weight	Overall dimension (mm)
CGF14-12-4	14	12	4	1000B/H (500ml)	3kw	3200kg	250018802300mm
CGF18-18-6	18	18	6	2000B/H (500ml)	3kw	4500kg	280021502300mm
CGF24-24-8	24	24	8	4000B/H (500ml)	5kw	6500kg	310024502300mm
CGF32-32-10	32	32	10	10000B/H (500ml)	6kw	7500kg	368028002500mm
CGF50-50-12	50	50	12	15000B/H (500ml)	11kw	13000kg	520037002900mm
